Phonecardiograph

This program are create to find peaks and find a frequency of peaks in Hz.
The virtual instrument was developed in LabVIEW. It allows:
  • Visualizing the recorded signal
  • Filting the signal from external noise
  • Strengthening the signal

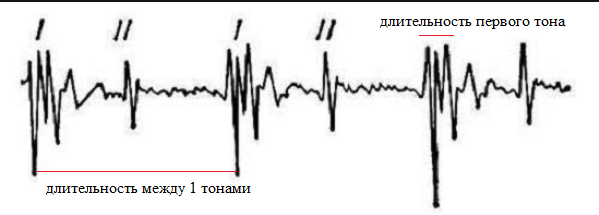

  • Calculation of the duration between the first tones and the one tone duration.
You can turn on Advanced mode with fine tuning of low pass filter and numbers of peaks.
You can download it and use it for free.
